Тема: Eurosens Display unit

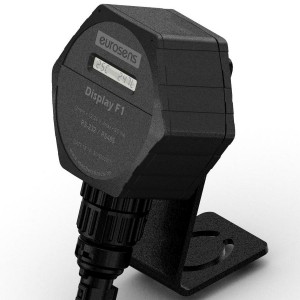

Eurosens-Display-F1_900x900

Eurosens Display is used to display information from Eurosens fuel flow and level sensors, as well as other manufacturers.
You can change settings via special configuration software and Eurosens Destination service USB adapter.

Connection to other devices with RS232/RS485/K-line interface is also possible.

Interfaces: RS-232, RS-485, K-Line
You can connect several fuel level sensors and(or) fuel flow sensors
Customizable
Easy mounting
Strong circuit electric protection

For connection you can use standart cables from Mechatronica:

Connection to differential fuel flow meters Delta:
Connect_Display_Delta

Connection to fuel level sensor Eurosens Dominator:
Connect_Display_Dominator

2

Re: Eurosens Display unit

Eurosens Display firmware update - version 07.04.2015

Post's attachments

47_DisplayF1_05010.zip 27.9 Кб, 1 скачиваний с 2015-05-18

У вас нет доступа к файлу. Для загрузки необходимо зарегистрироваться!

3

Re: Eurosens Display unit

Eurosens Display configuration software (with update from 09.04.2015)

Post's attachments

Display_UserConfigurator01RC.ZIP 6.17 Мб, 2 скачиваний с 2015-05-18

У вас нет доступа к файлу. Для загрузки необходимо зарегистрироваться!

4 (2015-09-26 15:23:08 отредактировано Mechatronica)

Re: Eurosens Display unit

Eurosens Display configuration software version 0.3  (with update from 07.09.2015)

Post's attachments

62_EUROSENS_Displa.zip 11.11 Мб, файл не был скачан.

У вас нет доступа к файлу. Для загрузки необходимо зарегистрироваться!

5

Re: Eurosens Display unit

What we can see at Display :

A. Display is working with Fuel flow meter Direct or Delta (several flow meters are supported) :


1. Total fuel consumption                                liters
2. Fuel consumption in idle mode                     liters
3. Fuel consumption in nominal mode              liters
4. Fuel consumption in overload mode             liters
5. Fuel consumption in intervention mode        liters
6. Fuel consumption since last power ON          liters
7. Instant fuel consumption                             liters per hour
8. Total engine operation time                          hours
9. Engine operation time in idle mode               hours
10. Engine operation time in nominal mode      hours
11. Engine operation time in overload mode      hours
12. Engine operation time in "intervention"      hours
13. Display operation time                                hours
14. Firmware version

6

Re: Eurosens Display unit

B. Display is working with Fuel leven sensor Dominator (up to 10 Dominator sensors are supported) :

1. Fuel level or Fuel volume*          % or liters
2. Output signal                             Volts or Hz
3. Firmware version

*to see fuel volume data you need to program tank calibration values in Display table.

Green LED :  Power ON
Red LED    :   Fast blinks : Fuel volume (level) below 10%
                     Slow blinks : Calibration table is absent

7 (2016-02-14 16:11:15 отредактировано Mechatronica)

Re: Eurosens Display unit

C. Display is working with axle load sensor


1. Axle load  in tonnes
2. Pressure (from Destination 01) or angle (from destination 02)
3. Output voltage from axle load sensor in volts
4. Firmware version

8

Re: Eurosens Display unit

Eurosens Display configuration software version 0.4  (with update from 29.03.2016)

Post's attachments

EN.ZIP 5.84 Мб, файл не был скачан.

У вас нет доступа к файлу. Для загрузки необходимо зарегистрироваться!

9

Re: Eurosens Display unit

User manual for Eurosens Display configurator

Post's attachments

Display_UserConfigurator_Users_Manual rev.0.5.pdf 2.16 Мб, файл не был скачан.

У вас нет доступа к файлу. Для загрузки необходимо зарегистрироваться!
